EBA 6.5 SCSR

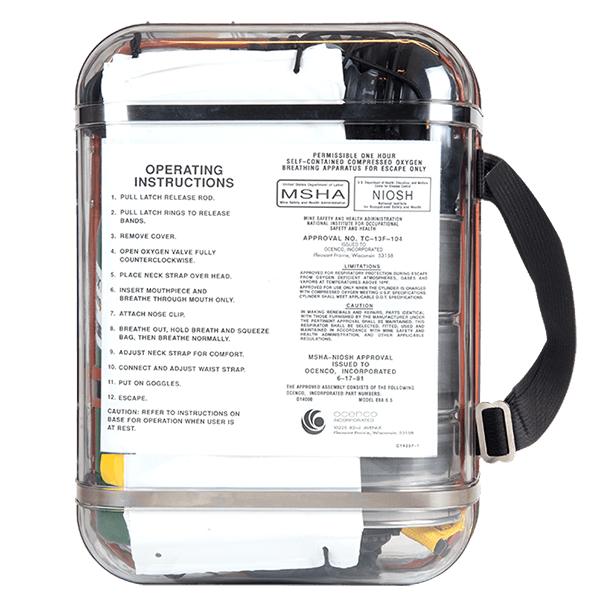

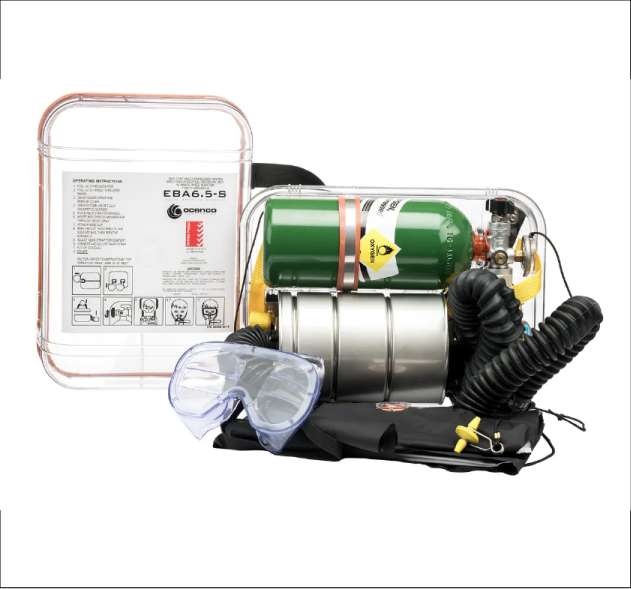

The EBA 6.5 is a self-contained, closed circuit breathing apparatus using compressed oxygen as a source rather than generating oxygen from chemicals. The rugged clear case allows the miner to quickly and accurately visually assess the condition of the device. The oxygen delivery system allows the user to inhale immediately from the device when donned, and provides up to 100 liters of oxygen flow during high work rates. Manual adjustment of the oxygen valve will provide a user at rest up to 8 hours of respiratory protection.
EBA 6.5 SCSR Physical Characteristics & Performance Data
| Oxygen Supply | 157 liters compressed oxygen |
|---|---|
| Rated Duration | 90 minutes at 35 l/m VE |
| Donning Time | Less than 30 seconds |
| Service Life | 15 years |
| Storage Temperature | 10°–140° F (-12°–60° C) |
| Inspection | Visual |
| Inspection Frequency | Every 90 days for stored units; daily if carried |
| Approvals | MSHA/NIOSH, Republic of South Africa, Australia, China, CE |
| Weight as Donned | 8.0 lbs. (3.6 kg) |
| Product Dimensions | 8.6” x 11.9” x 4.6” (21.6cm x 30cm x 11.4cm) |
Gallery
Accessories
EBA-6.5T Trainer
The EBA-6.5T TRAINER comes in a translucent orange container.
EBA 6.5T Trainer – P/N 900010
Expectation Trainer
The Ocenco Expectation Trainer is sold as two separate assemblies.
Mouthpiece – P/N 900060
Cartridge – P/N 900059
